VFD 220v Inverter ZONCN Variable Frequency Drive 1hp 2hp 50hz 60hz With RS485

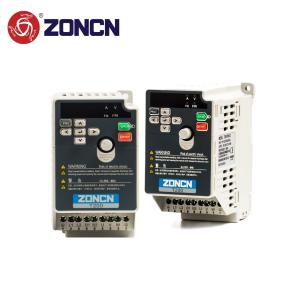

ZONCN T200 Inverter Introduction
| Inverter Model | Input voltage | Rated output power (KW) | Rated input current(A) | Rated output current (A) | Motor power (KW) |
| T200-0R4G-2 | 1PH AC 220V+/-15% | 0.4 | 5.4 | 2.1 | 0.4 |
| T200-0R75G-2 | 0.75 | 7.2 | 3.8 | 0.75 |
| T200-1R5G-2 | 1.5 | 10 | 7.2 | 1.5 |
| T200-2R2G-2 | 2.2 | 16 | 9 | 2.2 |
| T200-3R7G-2 | 3.7 | 23 | 13 | 3.7 |
| T200-0R4G-4 | 3PH AC 380V+/-15% | 0.4 | 3.4 | 1.5 | 0.4 |
| T200-0R75G-4 | 0.75 | 3.8 | 2.1 | 0.75 |
| T200-1R5G-4 | 1.5 | 5 | 3.8 | 1.5 |
| T200-2R2G-4 | 2.2 | 5.8 | 5.1 | 2.2 |
| T200-3R0G-4 | 3 | 8.5 | 7.2 | 3 |
| T200-3R7G/5R5P-4 | 3.7/5.5 | 10/15 | 9/13 | 3.7/5.5 |
| T200-5R5G/7R5P-4 | 5.5/7.5 | 15/20 | 13/17 | 5.5/7.5 |
| T200-7R5G/11P-4 | 7.5/11 | 20.0/26.0 | 17/25 | 7.5/11 |
| T200-11G/15P-4 | 11/15 | 26/35 | 25/32 | 11/15 |
| T200-15G/18.5P-4 | 15/18.5 | 35/38 | 32/37 | 15/18.5 |
| T200-18.5G/22P-4 | 18.5/22 | 38/46 | 37/45 | 18.5/22 |
| T200-22G/30P-4 | 22/30 | 46/62 | 45/60 | 22/30 |
| T200-30G/37P-4 | 30/37 | 62/76 | 60/75 | 30/37 |
| T200-37G/45P-4 | 37/45 | 76/92 | 75/90 | 37/45 |
| T200-45G/55P-4 | 45/55 | 92/113 | 90/110 | 45/55 |
| T200-55G/75P-4 | 55/75 | 113/157 | 110/152 | 55/75 |
ZONCN T200 Inverter Features
- cost-effective
- micro compact design
- Easy to use and install
- DIN Rail mount, RJ45 interface keypad cable
- Safe torque off feature
- Built-in EMC filter
- 24V DC input
- V/F, sensorless vector control, closed loop vector control mode
- Frequency range:0-599Hz
FAQ:
Q1, Can you produce for my own logo?
A. Yes, we have produced a lots of OEM brands inverter both for domestic and abroad markets.
Q2, Can i order 1 unit of inverter sample to test first?
A. Yes, our MOQ is 1 unit. You can test first before formal order.
Q3, Do you provide any technical support for your inverters?
A. Yes, if you have any technical question before or after sales for our VFD inverters, pls feel free to contact us, we will help you.
Q4. How about your vfd inverter's warranty time?
A. We have 18 months warranty for all our inverters.
