380v Variable Frequency Drivers VFD Inverter 1hp 2hp 0.75kw 1.5kw

Product Categories
Wuhu ZONCN Automation Equipment Co., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

380v Variable Frequency Drivers VFD Inverter 1hp 2hp 0.75kw 1.5kw

Brand Name : ZONCN

Model Number : NZ100-1R5G-4

Certification : KC; CE

Place of Origin : China

MOQ : 1 PC

Payment Terms : T/T, L/C, Western Union, Paypal

Supply Ability : 100,000 pcs/month

Delivery Time : 7-30 days

Packaging Details : inside: box; outside: carton

Product : variable frequency drives

Brand : ZONCN

Series : NZ100

control mode : V/F control

PID control : Built-in

Power : 1.5kw/2HP

overload protection : yes

over protection : yes

under voltge production : yes

cooling mode : forced air cooling

Contact Now

380v Variable Frequency Drivers VFD Inverter 1hp 2hp 0.75kw 1.5kw

The ZONCN NZ100 series VFD (Variable Frequency Drive) redefines compact motor control with its exceptional efficiency and space-saving design. This advanced VFD delivers outstanding advantages for applications where size and performance matter equally.

Key Benefits of This Compact VFD:

  1. Space Optimization

    • Small size, this VFD saves up to 40% panel space compared to standard VFD models

    • The ultra-compact VFD design enables flexible installation in tight spaces

  2. Energy Efficiency

    • This intelligent VFD achieves 20-35% energy savings through optimized PWM control algorithms

    • The VFD features automatic energy optimization that adjusts output in real-time

  3. Enhanced Performance

    • Despite its small size, this VFD delivers 150% overload capacity for 60 seconds

    • The VFD maintains stable operation from -10°C to 50°C

  4. Smart Features

    • The VFD incorporates built-in PLC functionality for standalone operation

    • With RS485 communication, this VFD easily integrates into automation systems

  5. User-Friendly Operation

    • The VFD's intuitive interface simplifies parameter setup

  6. Reliable Protection

    • The VFD provides comprehensive safeguards including overcurrent and overvoltage protection

    • IP20 enclosure ensures this VFD withstands industrial environments

Ideal for conveyor systems, packaging machines, and small pumps, the NZ100 series VFD combines compact dimensions with full-sized performance. This innovative VFD solution proves that great things truly come in small packages.

VFD inverter's Nameplate Description

380v Variable Frequency Drivers VFD Inverter 1hp 2hp 0.75kw 1.5kw

VFD inverter's Specification

VFD Model Input Voltage Output Power (KW) Input Current (A) Output Current (A) Motor Equipped (KW)
NZ100-0R4G-2 1PH AC220V+/-15% 0.4 5.4 2.5 0.4
NZ100-0R75G-2 0.75 8.2 5 0.75
NZ100-1R5G-2 1.5 14 7 1.5
NZ100-2R2G-2 2.2 23 11 2.2
NZ100-0R75G-4 3PH AC380V+/-15% 0.75 3.4 2.7 0.75
NZ100-1R5G-4 1.5 5.0 4.0 1.5
NZ100-2R2G-4 2.2 5.8 5.0 2.2
NZ100-3R7G-4 3.7 10.7 8.6 3.7
NZ100-5R5G-4 5.5 14.6 12.5 5.5
For powers above 5.5kw, NZ200 series with vector control is recommended.

VFD inverter's Dimension

380v Variable Frequency Drivers VFD Inverter 1hp 2hp 0.75kw 1.5kw

VFD inverter's Wiring Diagram

380v Variable Frequency Drivers VFD Inverter 1hp 2hp 0.75kw 1.5kw

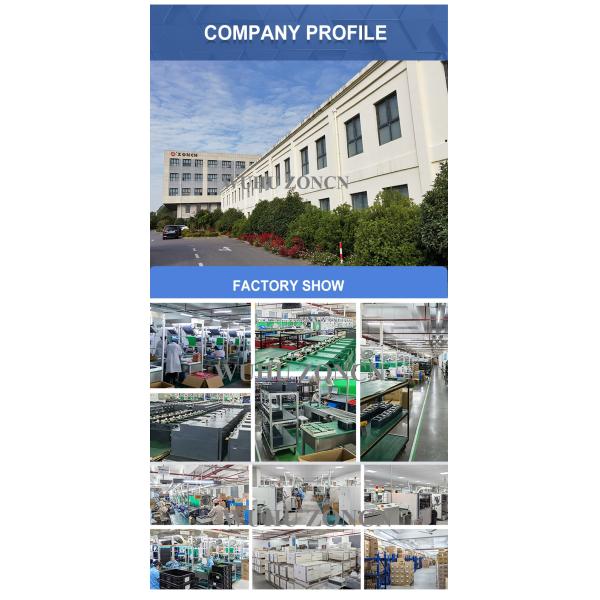

VFD inverter's Workshop

380v Variable Frequency Drivers VFD Inverter 1hp 2hp 0.75kw 1.5kw

VFD inverter's Application

380v Variable Frequency Drivers VFD Inverter 1hp 2hp 0.75kw 1.5kw
